Available Products
4 Products

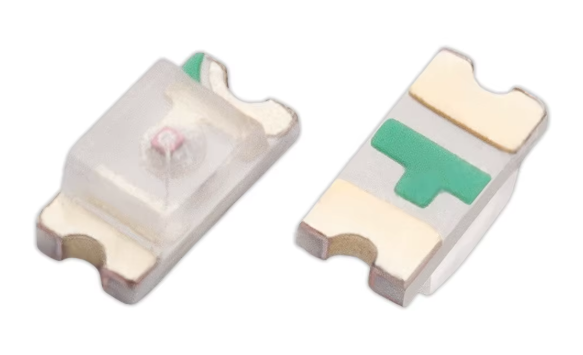

Chip LED 0603 Mono-colour
Red
Green
Yellow
Blue
The LG192 series 0603 (metric 1608) package Chip LEDs provide a cost effective surface mount solution for backlighting and indicator applications.
| Parameter | Value |
|---|---|
| Package | Chip LED 0603 / 1608 |
| Wavelength / CCT | Various |
| Forward Voltage (Vf) R | 1.6 – 2.4V |
| Forward Voltage (Vf) B, G | 2.4 – 3.2V |
| Max. Forward Current | 20mA |
| Viewing Angle | 120° |
| Operating Temp. | −40°C to +85°C |
| Tape & Reel | 4000 pcs / 8mm |

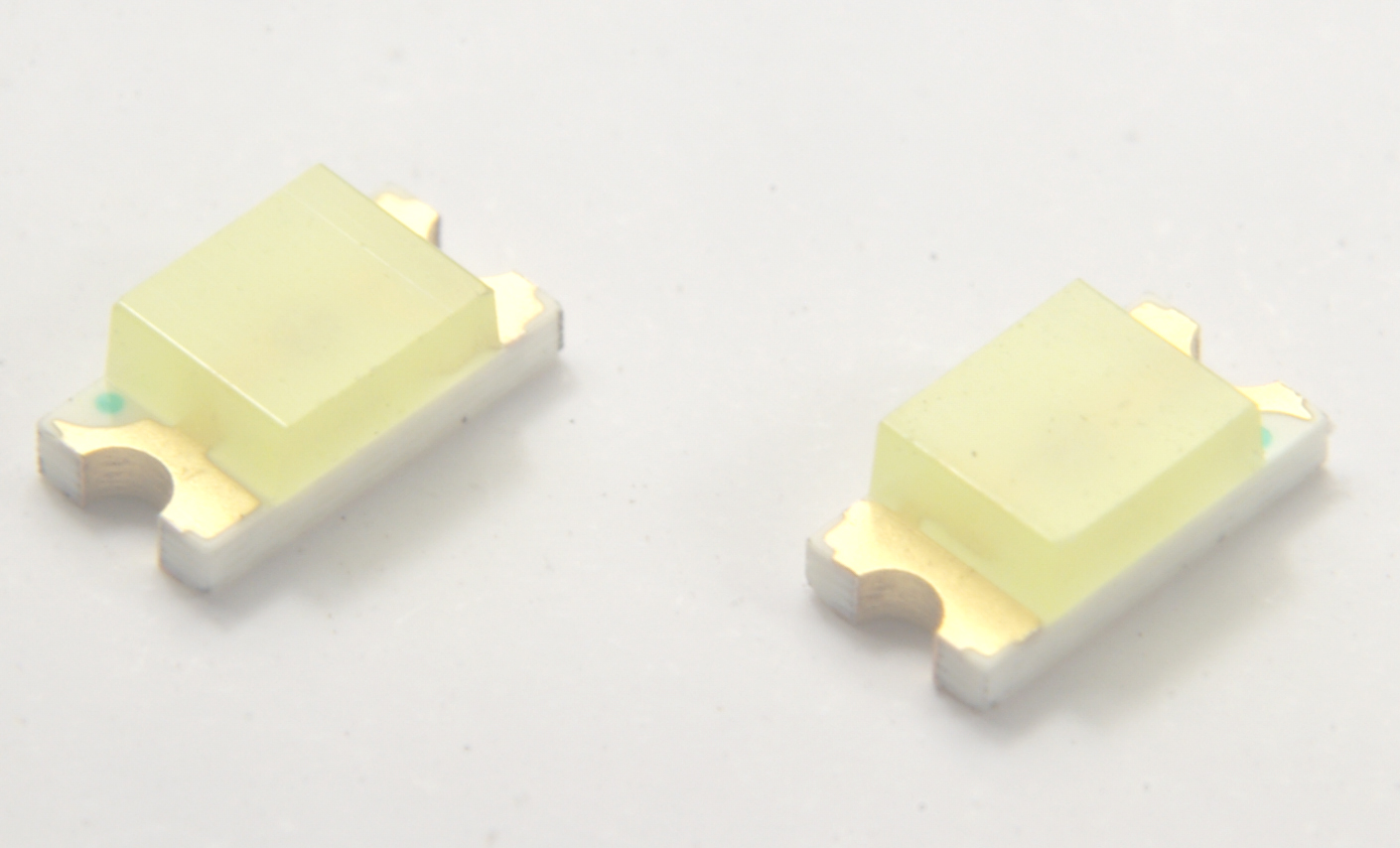

Chip LED 0603 White
Warm 2700K
Natural 4000K
Pure 6500K
The LG192 series 0603 (metric 1608) package Chip LEDs provide a cost effective surface mount solution for backlighting and indicator applications.
| Parameter | Value |
|---|---|
| Package | Chip LED 0603 / 1608 |
| Wavelength / CCT | 2700K / 4000K / 6500K |
| Forward Voltage (Vf) | 2.4 – 3.2V |
| Max. Forward Current | 20mA |
| Viewing Angle | 120° |
| Operating Temp. | −40°C to +85°C |
| Tape & Reel | 4000 pcs / 8mm |
Chip LED 0605 RGB
Red
Green
Blue
The LG197RGB 0605 (metric 1615) package Chip LEDs provide a cost effective multi-colour surface mount solution for backlighting and indicator applications.
| Parameter | Value |
|---|---|
| Package | Chip LED 0605 / 1615 |
| Wavelength / CCT | R / G / B |
| Forward Voltage (Vf) R | 1.6 – 2.4V |
| Forward Voltage (Vf) B, G | 2.4 – 3.2V |
| Max. Forward Current | 20mA |
| Viewing Angle | 120° |
| Operating Temp. | −40°C to +85°C |
| Tape & Reel | 4000 pcs / 8mm |

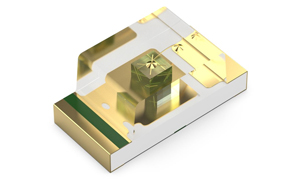

Mid Power IR Emitter Chip LED 0603 (1608)
Infrared
The LG192 series 0603 (metric 1608) Infrared Chip LED emitter provides a compact miniature solution
| Parameter | Value |
|---|---|
| Package | Chip LED 0603 (metric 1608) |
| Wavelength | 940nm |
| Forward Voltage (Vf) | 1.4 – 2.0V |
| Max. Forward Current | 50mA |
| Viewing Angle | 120° |
| Operating Temp. | −40°C to +85°C |
| Tape & Reel | 4000 pcs / 8mm |
