Available Products
6 Products
Mid Power IR Emitter 3030
Infrared
The LG192 series 0603 (metric 1608) package Chip LEDs provide a cost effective surface mount solution for backlighting and indicator applications.
| Parameter | Value |
|---|---|
| Package | PLCC-2 3030 |
| Peak wavelength | 830-960nm |
| Forward Voltage (Vf) | 1.4 – 2.0V |
| Max. Forward Current | 500mA |
| Viewing Angle | 17 - 120° |
| Operating Temp. | −40°C to +85°C |
Mid Power IR Emitter 2835
Infrared
The RF-AP series of IR emitters wavelengths range from 850nm to 940nm and are designed for camera illumination, surveillance systems and machine vision applications
| Parameter | Value |
|---|---|
| Package | PLCC-2 2835 |
| Peak wavelength | 830-870nm |
| Forward Voltage (Vf) | 1.4 – 2.0V |
| Max. Forward Current | 50-100mA |
| Viewing Angle | 17 - 120° |
| Operating Temp. | −40°C to +85°C |

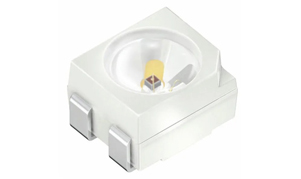

Mid Power IR Emitters 3528
Infrared
Our range of PLCC-4 IR emitters offer wavelengths from 850nm to 940nm and are designed for camera illumination, surveillance systems and machine vision applications
| Parameter | Value |
|---|---|
| Package | PLCC-4 3528 |
| Peak wavelength | 850-940nm |
| Forward Voltage (Vf) | 1.4 – 2.0V |
| Max. Forward Current | 50-100mA |
| Viewing Angle | 120° |
| Operating Temp. | −40°C to +85°C |
Mid Power IR Emitter Chip LED 0603 (1608)
Infrared
The LG192 series 0603 (metric 1608) Infrared Chip LED emitter provides a compact miniature solution
| Parameter | Value |
|---|---|
| Package | Chip LED 0603 (metric 1608) |
| Peak wavelength | 940nm |
| Forward Voltage (Vf) | 1.4 – 2.0V |
| Max. Forward Current | 50mA |
| Viewing Angle | 120° |
| Operating Temp. | −40°C to +85°C |
| Tape & Reel | 4000 pcs / 8mm |
Mid Power IR Emitter Chip LED 0805 (2012)
Infrared
The LG170UIR series 0805 (metric 2012) Infrared Chip LED emitter provides a compact miniature solution
| Parameter | Value |
|---|---|
| Package | Chip LED 0805 (metric 2012) |
| Peak wavelength | 845nm |
| Forward Voltage (Vf) | 1.4 – 2.2V |
| Max. Forward Current | 100mA |
| Viewing Angle | 140° |
| Operating Temp. | −40°C to +85°C |
| Tape & Reel | 4000 pcs / 8mm |
SL-R3528BRSIRPIRC-E3CH-AW
PLCC-6 SMD 3528 Red + IR LEDs
Red 633nm
IR 830nm
IR 940nm
PLCC-6 3528 SMD LEDs combining visible red with 850nm and 940nm infrared in a single compact 3.5×2.8mm surface-mount package.
| Parameter | Value |
|---|---|
| Package | PLCC-6 / 3.5×2.8mm |
| Red Wavelength (dom.) | 633nm typ. |
| SIR Peak Wavelength | 830nm typ. |
| PIR Peak Wavelength | 940nm typ. |
| Max. Forward Current | 25mA (per chip) |
| Viewing Angle | 120° |
| Operating Temp. | −40°C to +85°C |
