Available Products
4 Products

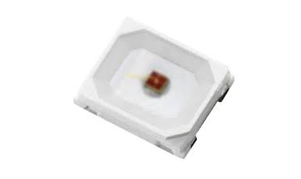

2835 LED 67-21 0.2W Coloured
Blue
Green
Yellow
Red
The 67-21 series high intensity mid power LEDs are suitable for a wide range of lighting and backlighting applications. Rated at 0.2W, devices are available in a range of colours.
| Parameter | Value |
|---|---|
| Package | 2.8×3.5×0.7mm PLCC-2 |
| Power | 0.2W |
| Colours | Blue, Green, Yellow, Red, Deep Red |
| Wavelength | 445–750nm |
| Viewing Angle | 120° |

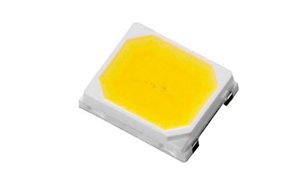

PLCC-2 2835 LED 0.2W White
Warm White
Natural White
Pure White
The 2835 series 0.2W high intensity mid power LEDs are suitable for a wide range of lighting and backlighting applications. Rated at 60mA, devices are tightly binned in MacAdam steps and offer low Vf.
| Parameter | Value |
|---|---|
| Package | 2.8×3.5×0.7mm PLCC-2 |
| Max. Current | 75mA |
| Efficacy | >190lm/W |
| CRI | >80 available |
| Viewing Angle | 120° |
PLCC-2 2835 LED 0.5W White
Warm White
Natural White
Pure White
The 2835 series 0.5W high intensity mid power LEDs are suitable for a wide range of lighting and backlighting applications. Rated at 150mA, devices are tightly binned in MacAdam steps and offer low Vf.
| Parameter | Value |
|---|---|
| Package | 2.8×3.5×0.7mm PLCC-2 |
| Max. Current | 180mA |
| Efficacy | >190lm/W |
| CRI | >80 available |
| Viewing Angle | 120° |
2835 Sunlight Spectrum LED 0.5W
Full Spectrum
The HL-A2835D90 series high intensity mid power LEDs are full spectrum, very close to the natural colour of the solar spectrum. Continuous saturation of the spectrum results in high colour reproduction and extremely low blue light hazard.
| Parameter | Value |
|---|---|
| Package | 2.8×3.5×0.7mm PLCC-2 |
| Max. Current | 150mA |
| Efficacy | >110lm/W |
| CRI | Ra >95 |
| Viewing Angle | 120° |
