Available Products
9 Series

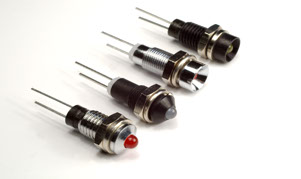

PA03-NR Series M6 Panel Mount LEDs
M6 Panel Mount LED Indicators with prominent or recessed bezel without integral resistor. Available in satin chrome or black finish with a 3.0mm LED mounted. A choice of colours and bi-colour is available.
| Parameter | Value |
|---|---|
| LED Size | 3.0mm |
| Bezel Diameter | 7.0mm |
| Thread | M6 |
| Finish | Satin Chrome or Black |
| Bezel Style | Recessed or Prominent |

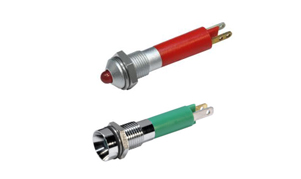

PA03-12/24V Series M6 Panel Mount LEDs
M6 Panel Mount LED Indicators with prominent or recessed bezel with an integral resistor. for 12V or 24V supply voltage. Available in satin chrome or black finish with a 3.0mm LED mounted. A choice of colours and bi-colour is available.
| Parameter | Value |
|---|---|
| LED Size | 3.0mm |
| Bezel Diameter | 7.0mm |
| Thread | M6 |
| Input Voltage | 12V / 24VAC |
| Finish | Satin Chrome or Black |
| Bezel Style | Recessed or Prominent |

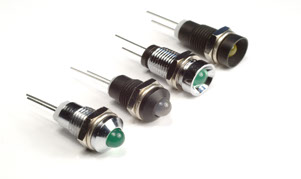

PA05-NR Series M8 Panel Mount LEDs
M8 Panel Mount LED Indicators with prominent or recessed bezel without integral resistor. Available in satin chrome or black finish with a 5.0mm LED mounted. A choice of colours and bi-colour is available.
| Parameter | Value |
|---|---|
| LED Size | 5.0mm |
| Bezel Diameter | 9.5mm |
| Thread | M8 |
| Finish | Satin Chrome or Black |
| Bezel Style | Recessed or Prominent |

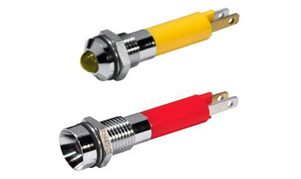

PA05-12/24V Series M8 Panel Mount LEDs
M8 Panel Mount LED Indicators with prominent or recessed bezel with an integral resistor. for 12V or 24V supply voltage. Available in satin chrome or black finish with a 5.0mm LED mounted. A choice of colours and bi-colour is available.
| Parameter | Value |
|---|---|
| LED Size | 5.0mm |
| Bezel Diameter | 9.5mm |
| Thread | M8 |
| Input Voltage | 12VDC / 24VDC |
| Finish | Satin Chrome or Black |
| Bezel Style | Recessed or Prominent |

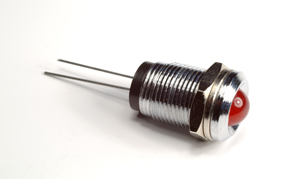

PA08-NR Series M12 Panel Mount LEDs
M12 Panel Mount LED Indicators with prominent or recessed bezel without integral resistor. Available in satin chrome or black finish with a 5.0mm LED mounted. A choice of colours is available.
| Parameter | Value |
|---|---|
| LED Size | 8.0mm |
| Bezel Diameter | 14mm |
| Thread | M12 |
| Finish | Satin Chrome or Black |
| Bezel Style | Recessed or Prominent |

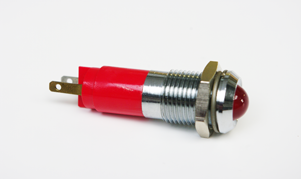

PA12-12/24V Series M14 Panel Mount LEDs
M14 Panel Mount LED Indicators with prominent or recessed bezel with an integral resistor for 12V or 24V supply voltage. Available in satin chrome or black finish with a 10.0mm LED mounted. A choice of colours and bi-colour is available.
| Parameter | Value |
|---|---|
| LED Size | 10.0mm |
| Bezel Diameter | 13.5mm |
| Thread | M14 |
| Input Voltage | Up to 110–240VAC |
| Finish | Satin Chrome or Black |
| Bezel Style | Recessed or Prominent |

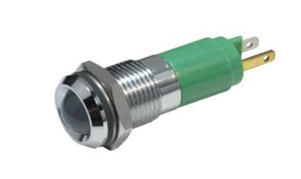

PA16-12/24V Series M16 Panel Mount LEDs
M16 Panel Mount LED Indicators with prominent or recessed bezel with an integral resistor for 12V or 24V supply voltage. Available in satin chrome or black finish with a 10.0mm LED mounted. A choice of colours and bi-colour is available.
| Parameter | Value |
|---|---|
| LED Size | 10.0mm |
| Bezel Diameter | 13.5mm |
| Thread | M14 |
| Input Voltage | 12V / 24V AC/DC |
| Finish | Satin Chrome or Black |
| Bezel Style | Recessed or Prominent |

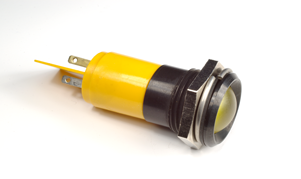

PA25-12/24V Series M22 Panel Mount LEDs
M22 Panel Mount LED Indicators with prominent or recessed bezel with an integral resistor for 12V or 24V supply voltage. Available in satin chrome or black finish with a 10.0mm LED mounted. A choice of colours and bi-colour is available.
| Parameter | Value |
|---|---|
| LED Size | 20.0mm |
| Bezel Diameter | 25mm |
| Thread | M22 |
| Input Voltage | Up to 110–240VAC |
| Finish | Satin Chrome or Black |
| Bezel Style | Recessed or Prominent |
